A NAND Gate-Only Frequency Counter

Back to Home page

In a nutshell:

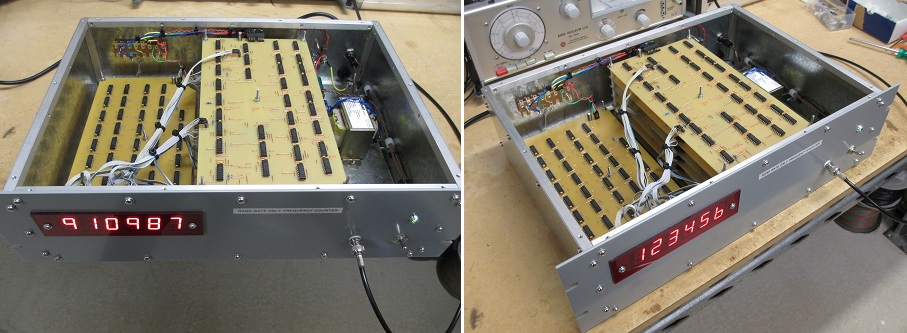

A six-digit frequency counter with leading-zero suppression implemented entirely in NAND gate logic.

Complete I.C. complement:	249 * 74HC00  quad NAND gate
			  	1   * 74HC132 quad NAND gate with schmitt-trigger inputs
				1   * 4011B   quad NAND gate (used in analogue mode as the signal-input pre-amplifier)

Measurement range:		1Hz-to-999,999Hz
Gate period:			1s
Display update rate:		0.5Hz (2s)
